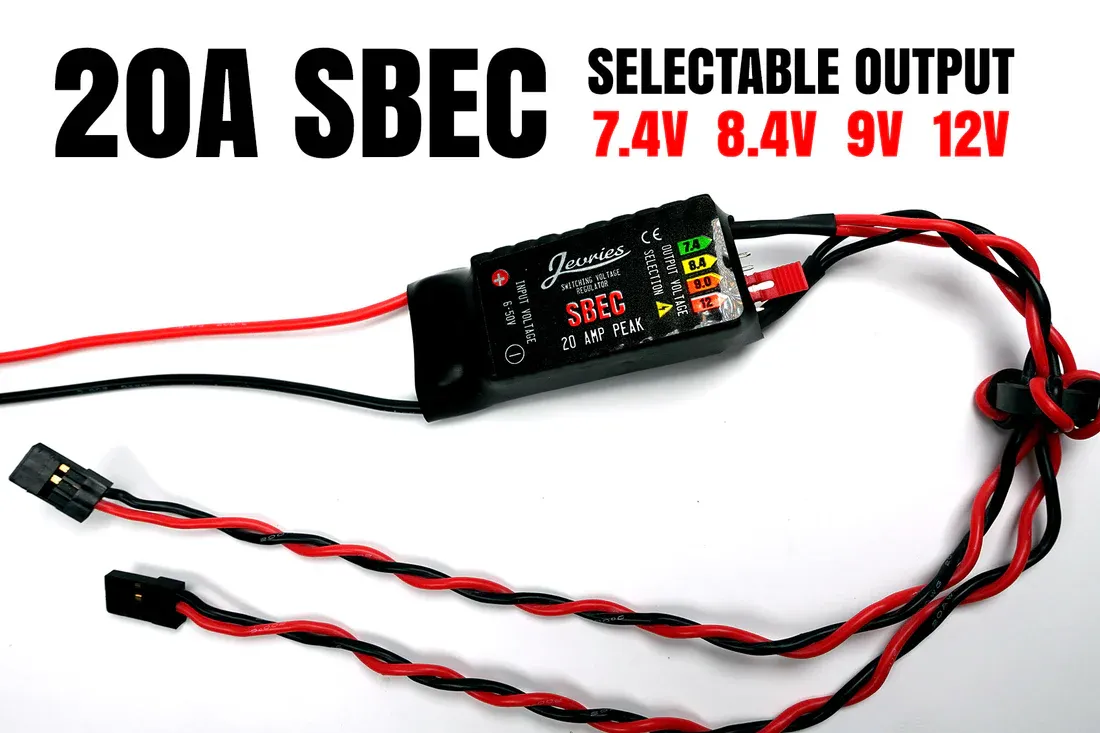

20A SBEC selectable Voltage ouptut

This SBEC offers a whopping 20A Peak performance and manually selectable voltage outputs up to 12V! No PC needed to program this SBEC just simply plug the jumper on the desired voltage pins an go!

This SBEC is Perfect for any RC Lowrider Hopper and Dancer cars using a 3S 11.1V or 11.4V HV LiPo Battery pack.

This item is for Experienced users only as it requires soldering and offers High Output Voltages that can result in Damaged parts.

Specs:

Peak Voltage: 20A

Input Voltage: 6V- 50V

Output Voltage: 7.4V/ 8.4V/ 9V/ 12V.

2X servo Outputs

Size: 60mm X 25mm x 19mm

MAKE SURE YOU CONNECT THE SBEC INPUTS AND OUTPUTS PROPERLY!!

USING THE 12V OUTPUT ONLY USE DIRECT SERVO CONNECT!! DO NOT CONNECT TO YOUR RECEIVER!!

ALWAYS MAKE SURE YOUR SERVO'S DON'T BIND!!

USING 12V ON 8.4V RATED SERVO'S WILL WEAR THE SERVO'S OUT FASTER AND IS NOT COVERED BY WARRANTY!!
